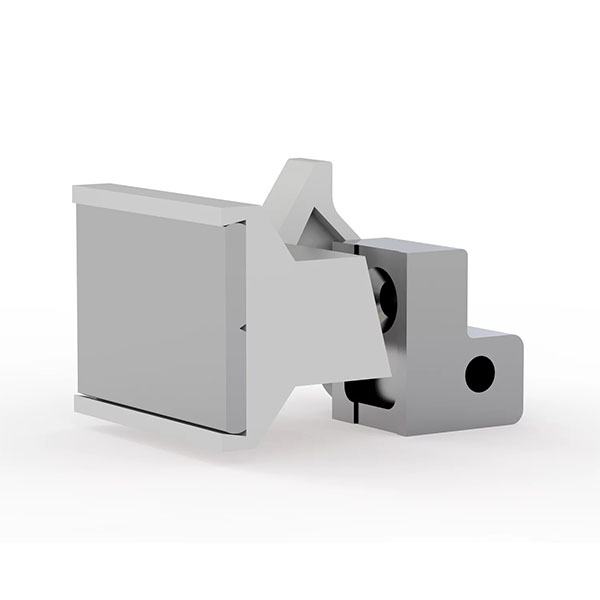

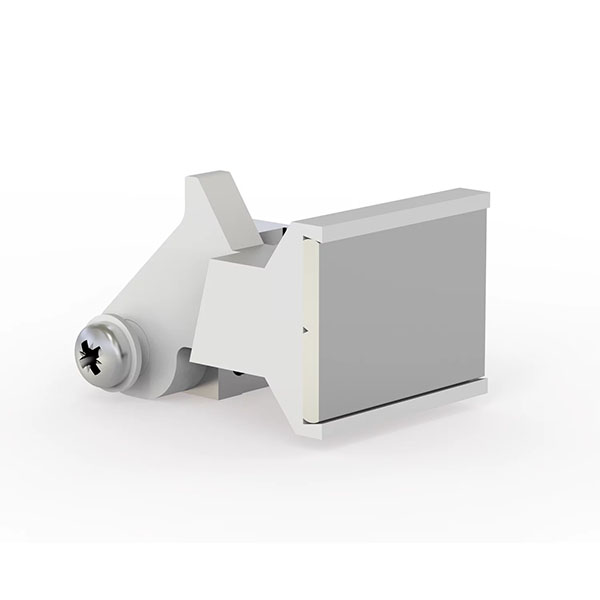

Extractor Handle Trapezoid Form, Type 1, Top, Grey
Product Details

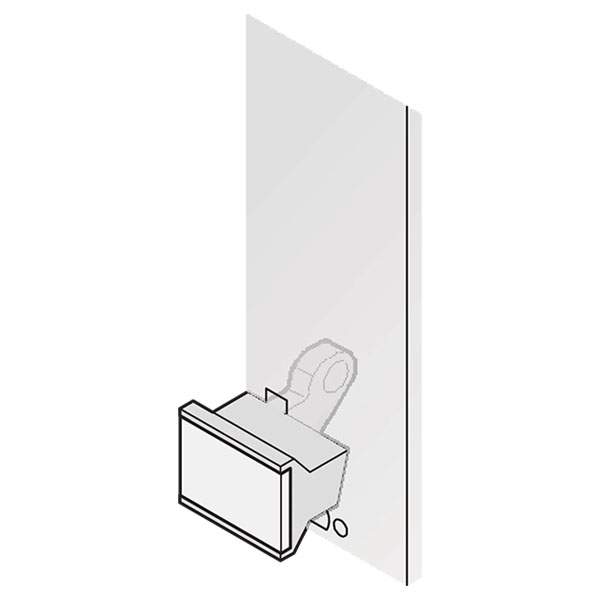

Extractor handle trapezoid form 1 can be used to extract PCBs. The handle must be assembled into the slot of the front panel.
| Pack Size: | 1 |
| Min Order Qty: | 20 |
| Lead Time: | 2-3 weeks |
Product Information
Product Code: 20817-328
£2.39
(£1.99 ex. VAT)
Features
- Handle closed laterally, PC, UL 94 V-0
- Pivot bush
- Identification plate, Al, 1.5 mm, anodized, cut edges plain
- Board support die-cast zinc

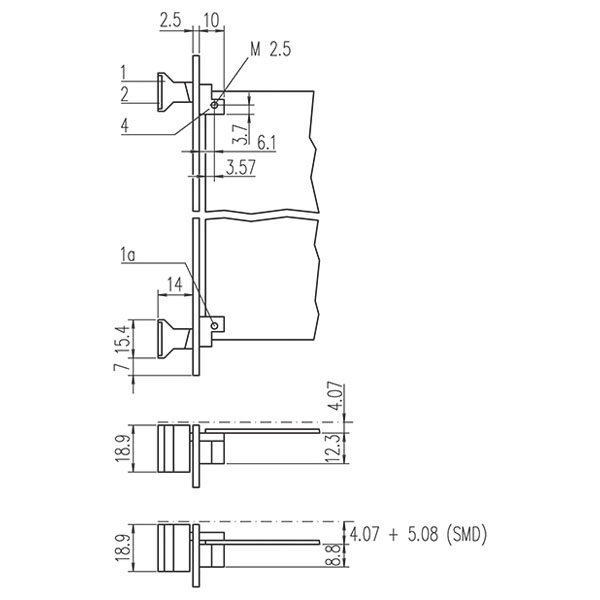

- In the 6U version, space can be created for SMD components on the left side by swapping the top and bottom handles and thus moving the PCB position 1 HP to the right
| Colour: | Light Grey |
| Handle Type: | Trapezoid, Type 1 |
| Flammability Rating: | UL® 94V-0 |
| Color Code: | RAL 7035 |
| Complies with: | EN 45545-2, R22-R24, HL3; IEC 60297-3-101 |
| Depth: | 26.3mm |
| Height: | 17.8mm |
| Material: | Polycarbonate |
| Product Type: | Handle |
| Type: | Extractor |
| Works with: | Front Panels |
| Item # | Description | Quantity |
|---|---|---|
| 1 | Pivot bush, brass | 1 |
| 2 | Printed board bracket, Zn die-cast | 1 |
