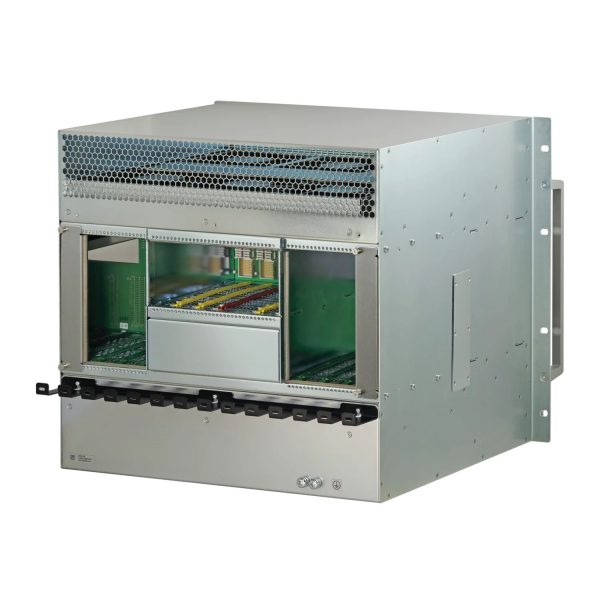

MTCA.4 System for 12 Double Full-Size AMC Modules- MTCA.4 Topology- 9 U- 84 HP

Description

In accordance with MTCA.4 R1.0 specification
84 HP system for 12 double Full-Size AdvancedMC modules- 2 Single Full-Size MCHs- and 4 / 2 Single Full-Size power modules
6 rear transition module slots for Double Full-Size RTMs
1 Single Full-Size slot for a JTAG switch module (JSM)
Backplane with dual-star topology
Optional fan speeds for front and rear sections can be separately adjusted via the MCH
2 hot-swap fan modules with cooling unit manager (CU EMMC)
Air filter accessible from the front
