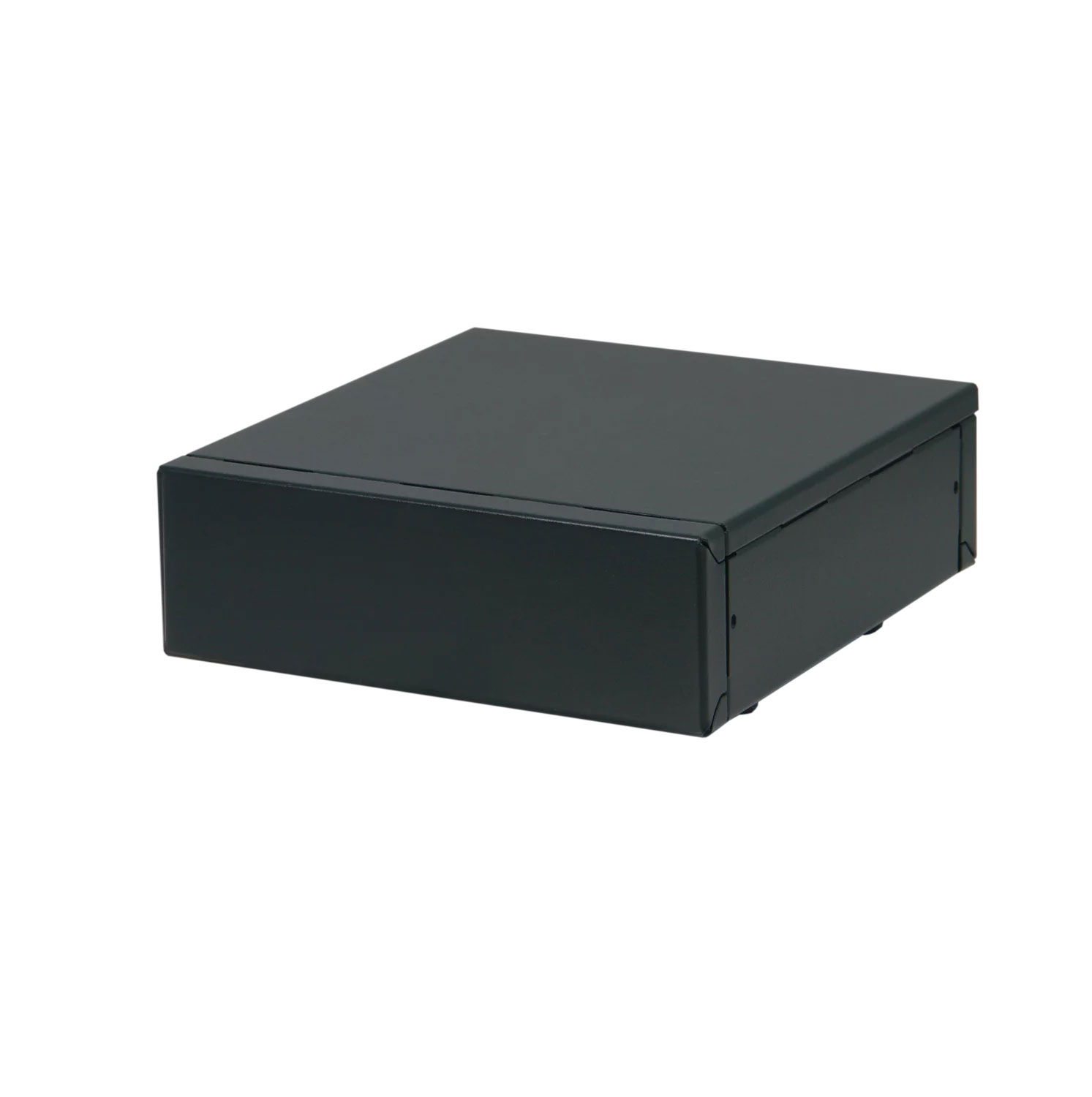

Interscale Desktop Case, Non-Perforated, 133 mm, 399 mm, 310 mm
Product Details
Flexible desktop case with integrated EMC protection. ... Modular desktop case consisting of 4 assembled parts ... Ingress protection up to IP 30 ... Modified or customized cases upon request
| Pack Size: | 1 |
| Min Order Qty: | 1 |
| Lead Time: | Available upon request |
Product Information
Product Code: 14820-397
£41.74
(£34.78 ex. VAT)
- Modular desktop case consisting of 4 assembled parts
- Developed according to IEC 60297-3-109 (under progress at IEC)
- Integrated EMC protection
- Ingress protection up to IP 30
- Color RAL 7016
- Modified or customized cases upon request
| Height: | 132.6mm |
| Width: | 399mm |
| Depth: | 310.35mm |
| Cooling: | Non-Perforated |
| Color: | Anthracite Grey |
| Color Code: | RAL 7016 |
| Finish: | Aluminum-Zinc Plated; Powder Coated |
| Material: | Aluminum; Steel |
| Product Family: | Interscale |
| Product Type: | Small Form Factor Case |
| Protection Rating: | IP30 |
| Type: | Desktop |

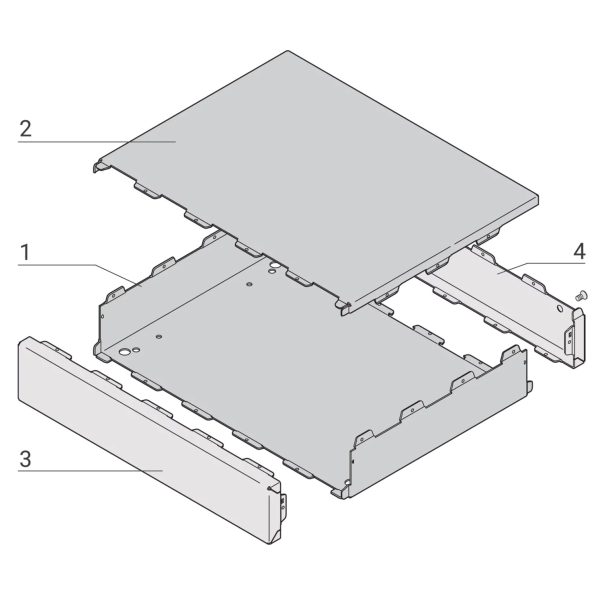

| Item # | Description | Quantity |
|---|---|---|
| 1 | Base with 2 side panels (solid), St, 1 mm, AlZn coated, RAL 7016 (anthracite grey) | 1 |
| 2 | Top cover, St, 1 mm, AlZn coated, RAL 7016 | 1 |
| 3 | Front panel, Al, 1 mm, RAL 7016 | 1 |
| 4 | Rear panel, Al, 1 mm, RAL 7016 | 1 |
| 5 | Assembly kit and user manual | 1 |
