ZP
Product Details

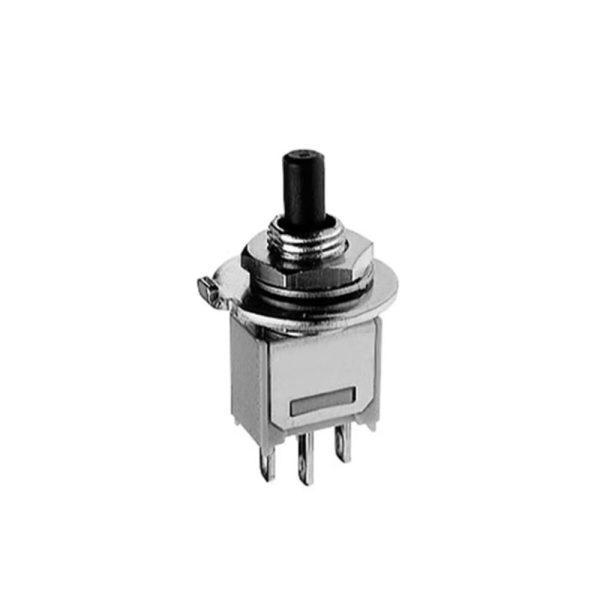

ZP series are tiny pushbutton switches with metal bushing
Product Information
£0.00
(£0.00 ex. VAT)
| Function: | 1Nm max. applied between the 2 nuts |
| Tf Range: | 1-5 mm (.059) with 2 nuts |
| Features 1: | Travel :- function 2 (ON-MOM) : 1-2 mm (.047) ± 0-3 (.11)- function 3 (OFF-MOM) : 1 mm (.039) ± 0-3 (.11) |
| Features 2: | Strength of terminals : pull-out force 10N max. |
| Features 3: | Max. panel thickness : 1-5 mm (.059) with 2 nuts |
| Features 4: | Operating temperature : -30¡C to +85¡C |
| Features 5: | Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3) |
| Features 6: | Hand soldering : 280¡C max. for 5 seconds max. Wave soldering : 260¡C max. for 5 seconds max. |
