ZL
Product Details

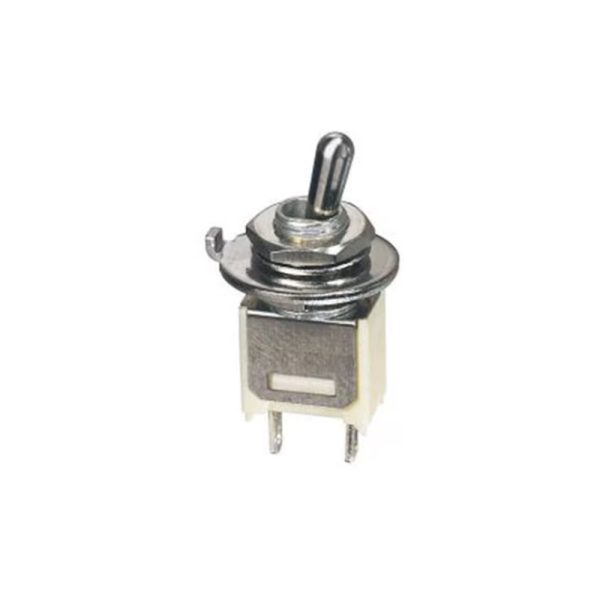

Sub-miniature toggle switches with metal bushing available in single pole configurations- with ¿4.83 mm threaded bushing. Gold plated or silver plated contacts & solder lug or straight PC terminals.
Product Information
£0.00
(£0.00 ex. VAT)
| Function: | 1 Nm max. applied between the 2 nuts |
| Tf Range: | 1.5 mm (.059) with 2 nuts |
| Features 1: | Strength of terminals : pull-out force 10 N max. |
| Features 2: | Hand soldering : 280 ¡C max. for 5 seconds max. |
| Features 3: | Wave soldering : 260 ¡C max. for 5 seconds max. |
| Features 4: | 4.83 mm threaded bushing |
| Features 5: | Solder lug and straight PC terminals |
