IS

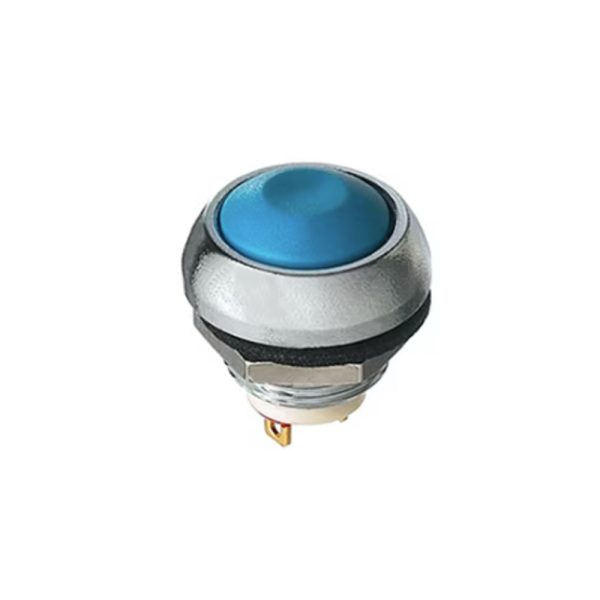

Normally open contacts with threaded bushing mount.
Tactile feedback- sealed to IP67 and compact size.
A variety of actuator colors available.
Additional sealing by silicone boot for protection against frost and abrasion by sand. Order separately.
Additional information
| Function | (applied to nut): 1 Nm max. with metal nut U166 1.5 Nm max. with plastic nut U4248 |
|---|---|
| Tf Range | 1-5 mm (.059) min. – 4 mm (.157) max. |
| Features 1 | Total travel: 1.7 mm (.066) +/- 0.3 mm |
| Features 2 | Typical operating force: 4 N +/- 3 N |
| Features 3 | Low level or mechanical life: 1-000-000 cycles |
| Features 4 | Soldering: 300 ¡C max. for 3 seconds |
