IB
Product Details

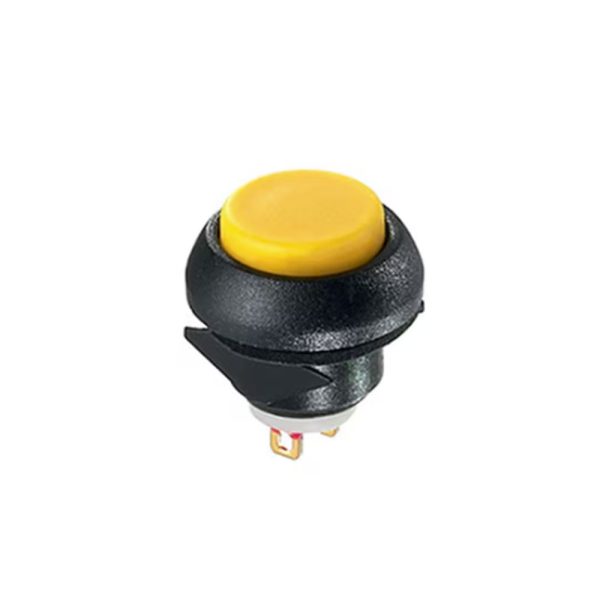

Sealed pushbutton switches with snap-in mount. Compact and light in weight with 50% reduction in weight compare to metallic models.
Product Information
£0.00
(£0.00 ex. VAT)
| Function: | (applied to nut) : 1 Nm max. with metal nut U166 1-5 Nm max. with plastic nut U4248 |
| Tf Range: | 0.8 mm (.031) min. - 1.8 mm ( .071) max. |
| Features 1: | Total travel: 1.7 mm (.066) +/- 0.3 mm |
| Features 2: | Typical operating force: 4 N +/- 3 N |
| Features 3: | Low level or mechanical life: 1-000-000 cycles |
| Features 4: | Soldering : 300 ¡C max. for 3 seconds |
| Features 5: | Behind panel depth of 13mm (.512) |
| Features 6: | Tactile feedback |
