Additional information
| Function | 1.5 Nm min.- 4 Nm max. applied to nut |
|---|---|
| Tf Range | 1 (.039) to 6 mm (.236) max. |
| Features 1 | Low level or mechanical life : 1-000-000 cycles |
| Features 2 | Front panel sealing : IP65 |
| Features 3 | Hand soldering : 300 °C- 5 sec. max. |
| Features 4 | Panel cut-out : Ø 22.2 mm (.874) or Ø 24.2 mm (.952) |
| Features 5 | Min. pitch for matrix mounting : 30 mm x 30 mm (1.181×1.181) or 33 mm x 33 mm (1.299×1.299) |

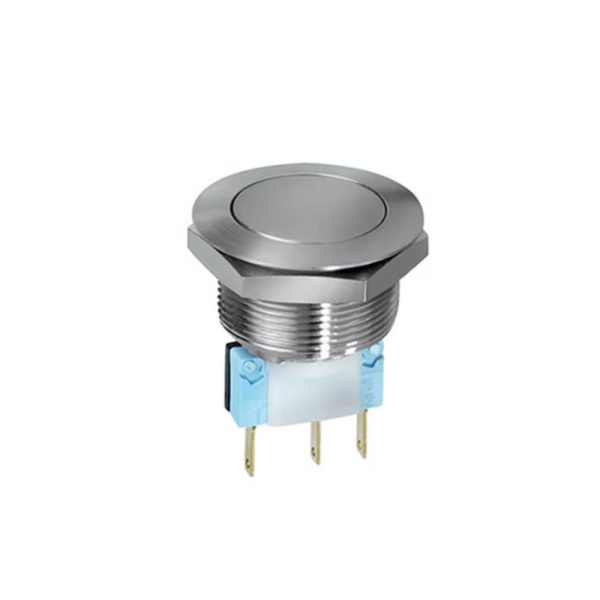

| Features 6 | Security pushbutton switches Ø 22 mm or Ø 24 mm with large actuator |
