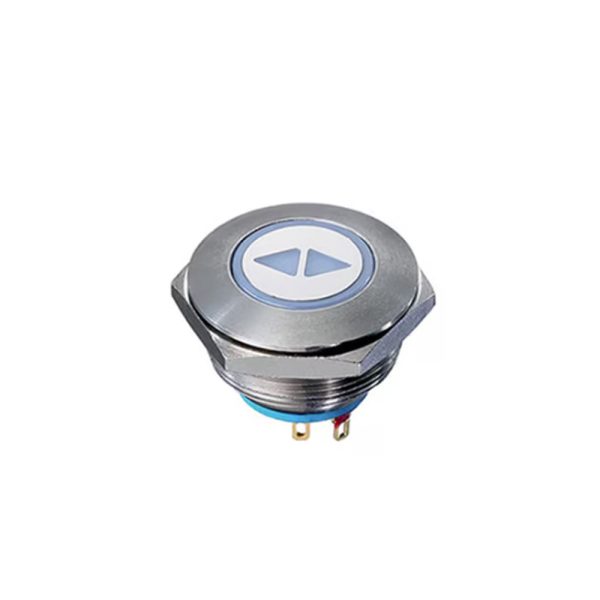

AV – 19-22 – tactile – overmolded
Product Details
The AV Series pushbuttons offer attractive- robust and durable switches- available with different bushing diameters- actuator shapes- bushing and actuator materials.
Product Information
£0.00
(£0.00 ex. VAT)
| Function: | 5 Nm min.- 14 Nm max. applied to nut |
| Tf Range: | 1 (.039) to 6 mm (.236) max. |
| Features 1: | Travel : 0.7 mm (.027) ±0.1 mm (.003) |
| Features 2: | Operating force : 7 N ±-2 N |
| Features 3: | Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) |
| Features 4: | Min. pitch for matrix mounting : 30 mm x 30 mm (1.181x1.181) |
| Features 5: | Tactile security pushbutton switches with overmolded actuator Momentary (NO) |
| Features 6: | Actuator and bushing : nickel plated- chrome plated- varnished polished or stainless steel |
