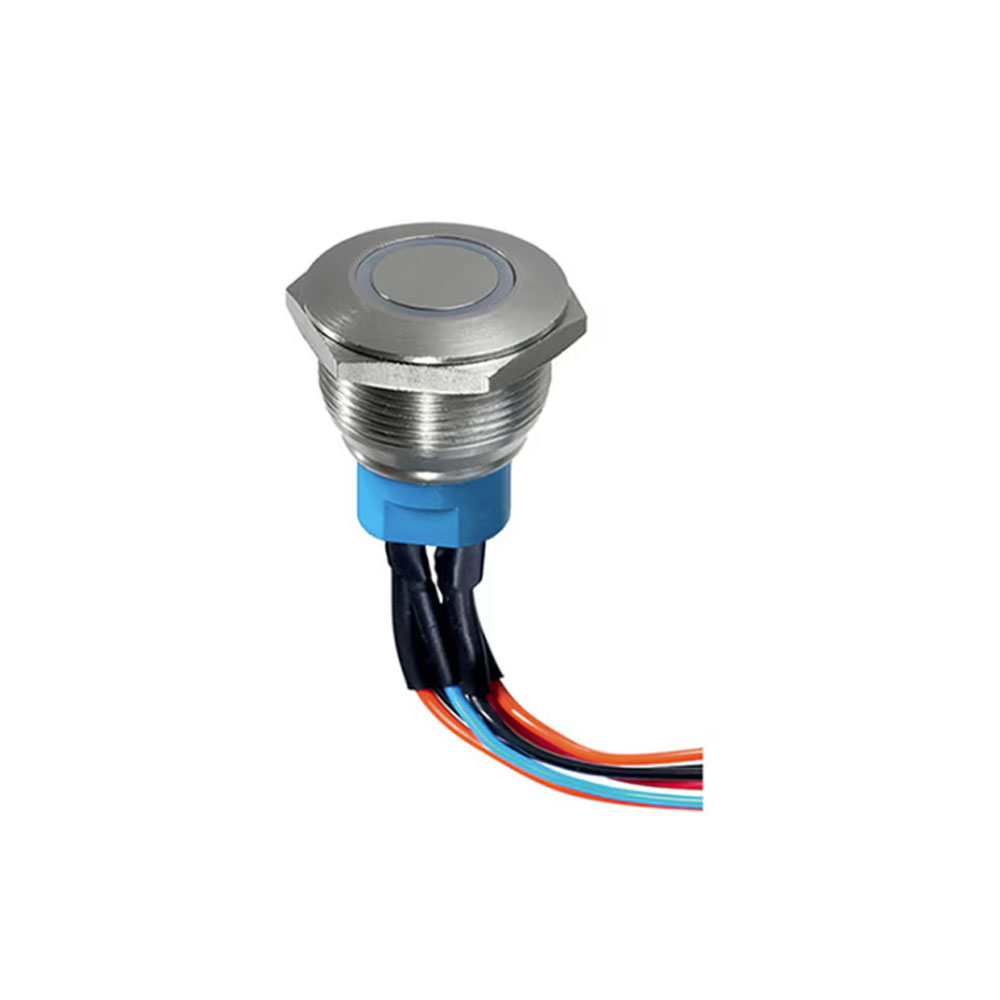

AV – 19-22 momentary NO
Product Details
The AV Series pushbuttons offer attractive- robust and durable switches- available with different bushing diameters- actuator shapes- bushing and actuator materials.
Product Information
£0.00
(£0.00 ex. VAT)
| Function: | 1.5 Nm min.- 4 Nm max. applied to nut |
| Tf Range: | 1 (.039) to 11 mm (.433) max. |
| Features 1: | Low level or mechanical life : 1-000-000 cycles |
| Features 2: | Hand soldering : 300 °C- 3 sec. max. |
| Features 3: | Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) |
| Features 4: | Min. pitch for matrix mounting : 30 mm x 30 mm (1.181x1.181) (AV9P & AV9B : 25 mm x 25 mm) |
| Features 5: | Security pushbutton switches Bushing diameters 19 mm and 22 mm available |
| Features 6: | Momentary (NC/NO) Actuator and bushing : nickel plated- chrome plated- or stainless steel |
