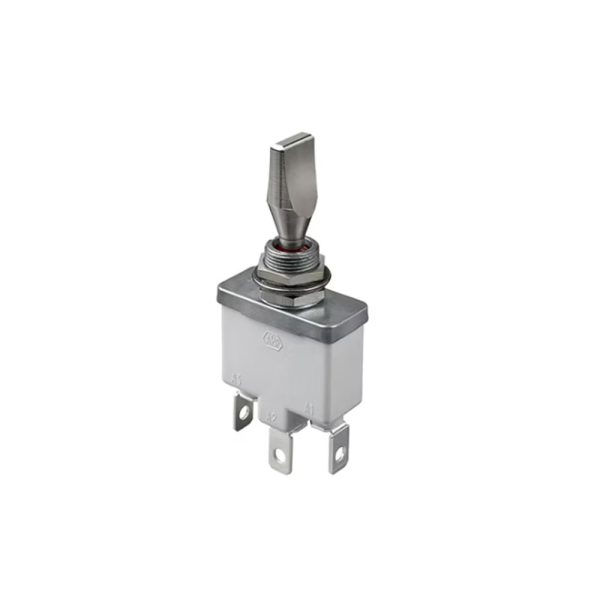

3500 Panel Switch
1 and 2 pole configurations available with solder lug- screw or quick connect terminals. Toggle switches designed for outdoor applications. Frontal sealing to IP67 and IP69K by a silicone membrane. Rear sealing to IP64 provided by moulded-in terminals.
Additional information
| Function | 2 Nm (1.47 Ft.lb) max. applied to nut |
|---|---|
| Max Electrical Rating | Mechanical life : 40-000 cycles |
| Features 1 | Completely sealed switches withstanding 0-1 bar pressure |
| Features 2 | Frontal sealing to IP67 and IP69K by a silicone membrane (for sealed panel mounting- add washer U60) |
| Features 3 | Rear sealing to IP64 provided by moulded-in terminal inserts |
| Features 4 | Approved to European standards CECC 96000 |
| Features 5 | 3 types of terminals |
